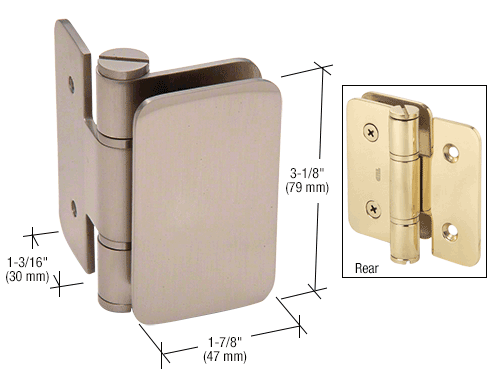

Zurich 03 Series Wall Mount In-swing Hinge - Brushed Nickel

Zurich 03 Series Wall Mount In-swing Hinge - Brushed Nickel

Regular price £89.99
Regular price £0.00 Sale price £89.99
Sale Sold out
Tax included.

Catalog Number: ZUR03BN
Finish: Brushed Nickel



Wall Mount Inswing

Ideal for Bi-Fold Application

Available in Several Beautiful Finishes

ZURICH hinges are unavailable for the German market (ZURICH Beschläge sind für den deutschen Markt nicht verfügbar!)



The Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by . All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. In addition, screws and washers are interchangeable for a special design accent. Only two holes per Hinge per panel are required, with no cut-out necessary.

Screw and Washer Accent Kit: Interchangeable Screws and Washers for Zurich Series Hinges let you add a special highlighting accent to the installation (e.g., Cat. No. ZUR70). Available in four finishes: Brass, polished stainless, satin stainless, and gold plated.

NOTE: Not Available in Germany.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 pounds (45 kilograms) with a maximum door width of 36" (914 mm).

Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 pounds (68 kilograms) with a maximum door width of 40" (1016 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
Construction: Stainless Steel or Solid Brass
Hinge Swings: See descriptions next to photos of hinges.
Closing Type: Free-Swinging
Two Holes Required Per Hinge Per Panel (No Cut-Out)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
