Vienna 044 Wall to Glass Hinge MATTE BLACK

Vienna 044 Wall to Glass Hinge MATTE BLACK

Regular price £120.00
Regular price £0.00 Sale price £120.00
Sale Sold out
Tax included.

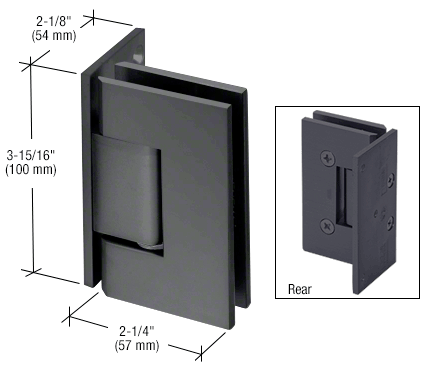

Wall to Glass Shower Door Hinge, Offset Back-Plate, Matte Black Finish

SKU: VIE044MBL

Colour Finish: Matte Black

Glass Thickness:  10mm to 12mm Toughened Safety Glass

Hinge Swings:  90 Degree in and 90 Degree Out

Closing Type:  Self-Centring when within 15 Degree of Closed Position.

Deduction:  8mm from glass width.

Back-plate:  Offset back-plate

Two hinges:  (10mm) Up to 45 kg, with a max door width of 864mm

Two hinges:  (12mm) Up to 45 kg, with a max door width of 813mm

Three hinges:  (10mm) Up to 59 kg, with a max door width of 864mm

Three hinges:  (12mm) Up to 59 kg, with a max door width of 813mm

Glass Fabrication:  Cut-Out Required in Glass

Includes:  Gaskets, Screws, and Glass Fabrication Dimensions

Construction:  Solid brass with all moving parts (pins and springs) in stainless steel.

Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it Degrees own  "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it Degrees own  rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.
