Square Style Fixed Panel U Clamp - Glass Clamp - 8mm to 12mm Glass - Chrome

Square Style Fixed Panel U Clamp - Glass Clamp - 8mm to 12mm Glass - Chrome

Regular price £20.00
Regular price £0.00 Sale price £20.00
Sale Sold out
Tax included.

SKU: SCU4CH


Colour Finish: Chrome

For 5/16" to 3/8" (8 to 10 mm) Thick Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps
Use Monolithic Tempered Glass

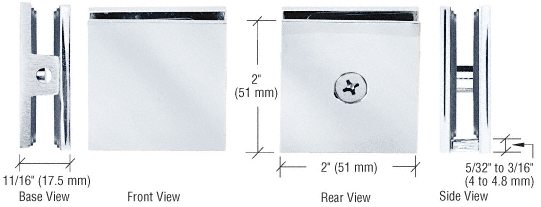

CRL Square Fixed Panel U-Clamps mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is from 5/32" to 3/16" (4 to 5 mm). Clear silicone can be used to seal the gap and provide a clean, water resistant appearance.

Our solid brass Square Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. SCU4 Clear Gaskets may be ordered separately. Contact us for further information.

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 3/8" (8 to 10 mm)
Glass Fabrication Hole Diameter Required: 3/4" (19 mm diameter)
Includes: Mounting Screws (for Wall Clamps) and Clear Gaskets
