Square 90 Degree Glass to Glass Clamp - Hole in Glass - 10mm and 12mm Glass - CHROME
Square 90 Degree Glass to Glass Clamp - Hole in Glass - 10mm and 12mm Glass - CHROME
Couldn't load pickup availability
SKU: SGC90CH
Colour Finish: Chrome
For 10mm and 12mm Toughened Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps
Use Monolithic Tempered Glass

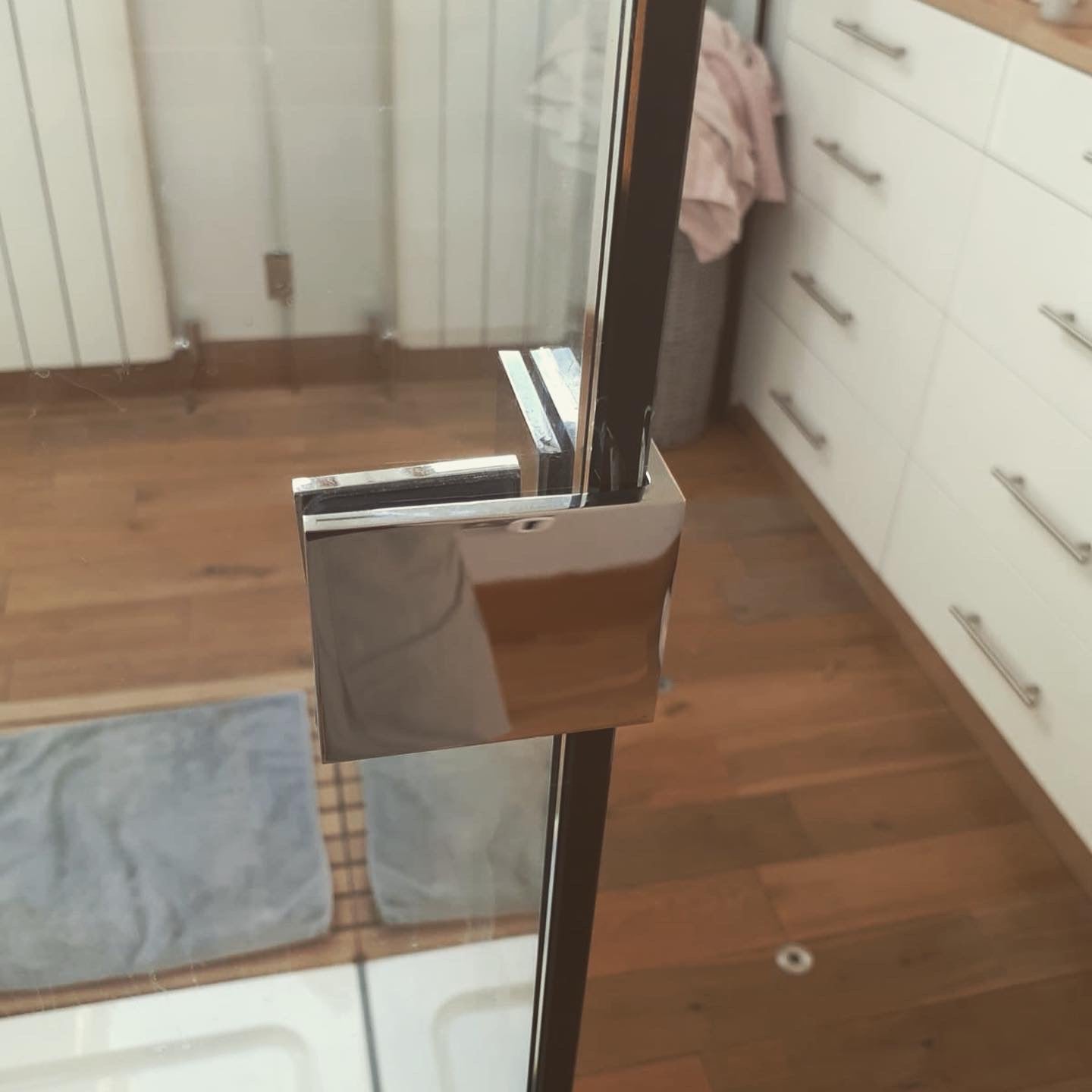

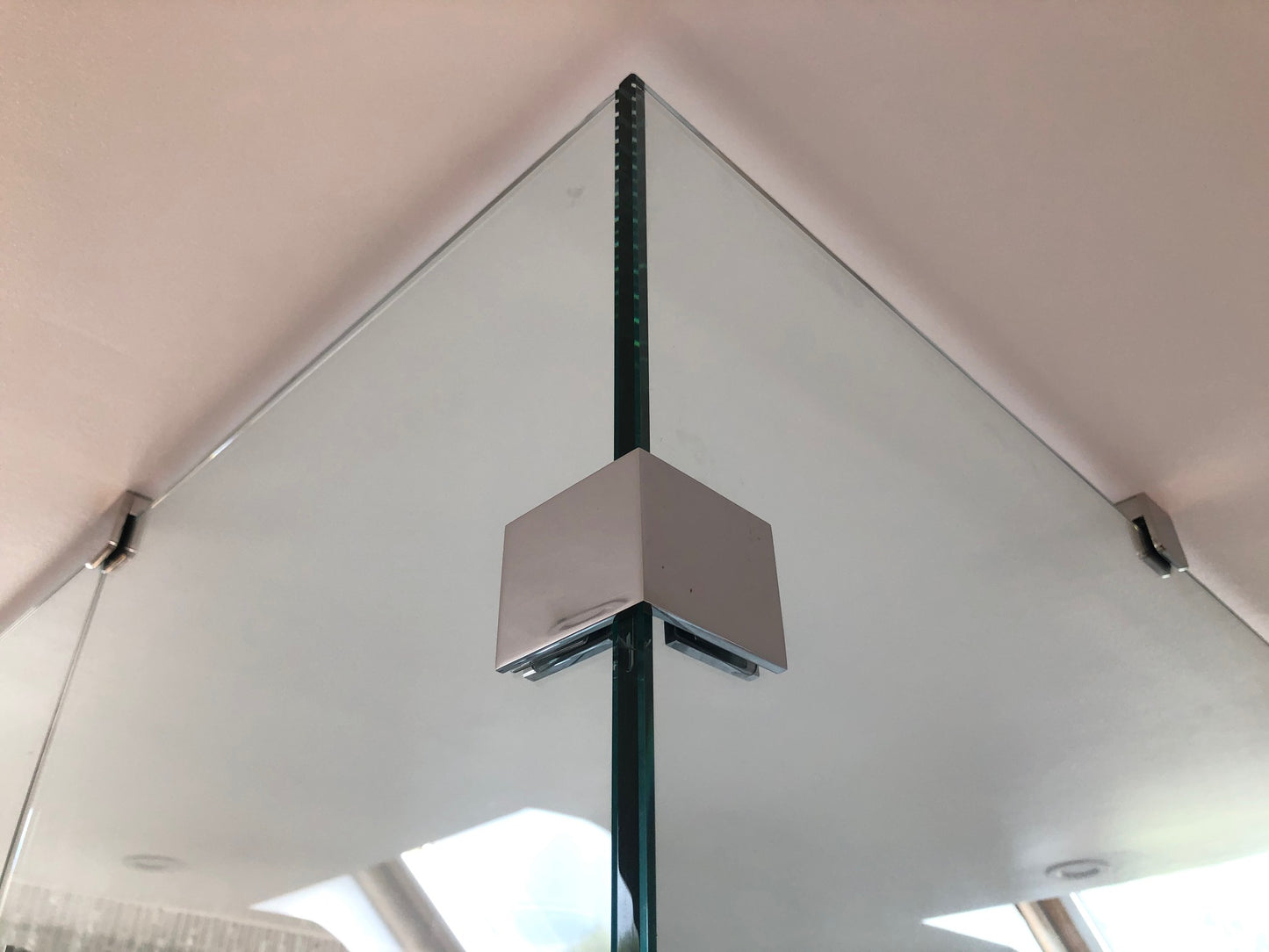

CRL Square 90º Glass-to-Glass Clamps have sharp squared off corners and a closed back. Used to connect two fixed glass panels meeting at 90 degrees. Panels may be overlapped or mitered at the corner. Drawings and templates for all Clamps are available.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
