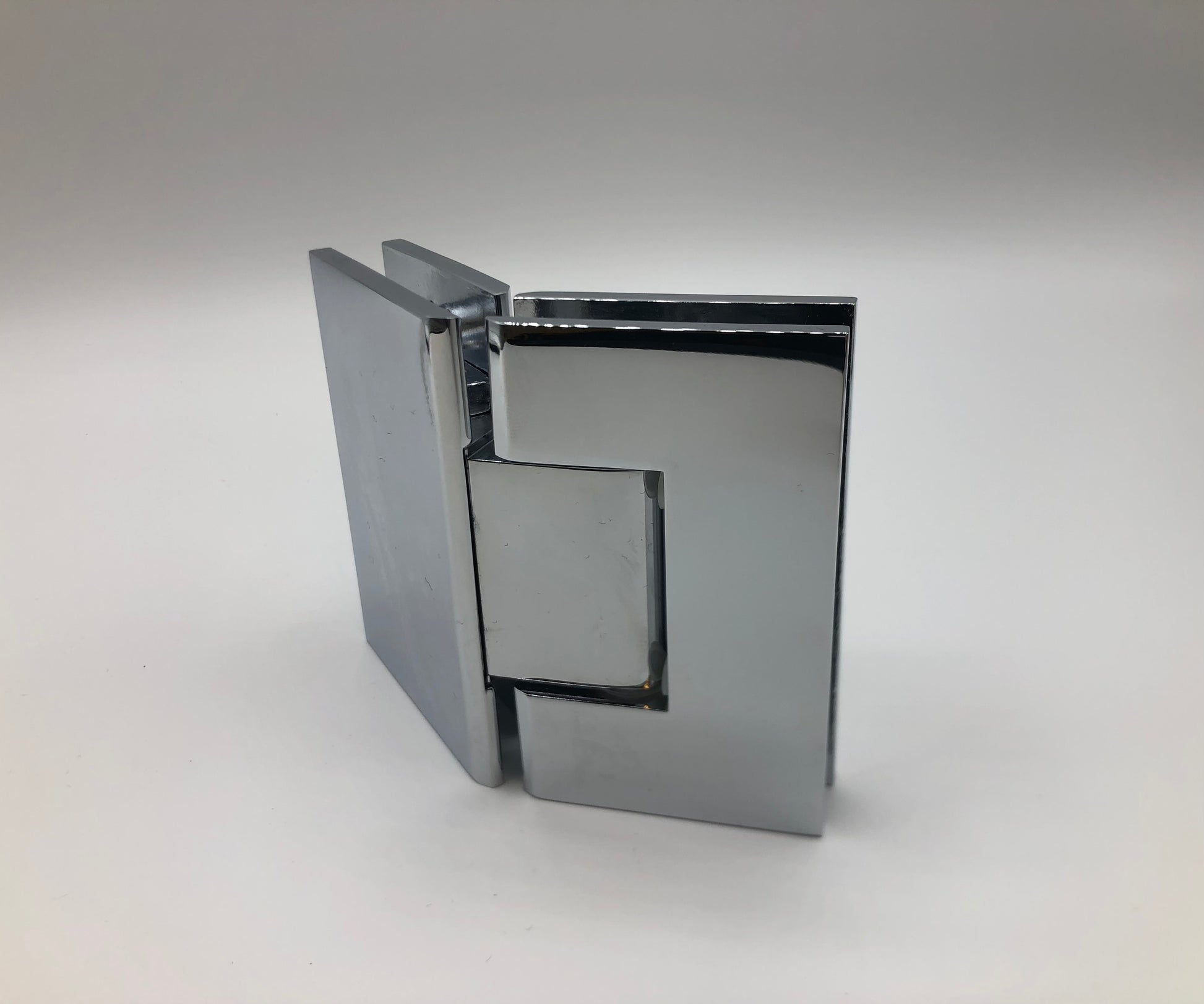

Adjustable Glass to Glass Shower Door hinge, Geneva 135 Degree Glass-to-Glass Hinge CHROME

Adjustable Glass to Glass Shower Door hinge, Geneva 135 Degree Glass-to-Glass Hinge CHROME

Regular price £140.00
Regular price £0.00 Sale price £140.00
Sale Sold out
Tax included.

Adjustable Glass to Glass 135 degree Shower Door Hinge, Chrome Finish

Catalogue Number:  GEN345CH

Glass Thickness:  8mm to 12mm Toughened Safety Glass

Hinge Swings:  Adjustable 135 degree glass to glass. Adjustable to Any Angle up to 90 degree, without removing the glass shower door.

Closing Type:  Self-Centring when within 15 Degree of Closed Position

Deduction:  4mm/6mm gap between glass panels. Door glass width may require alteration from standard clearance deductions when adjusting angles

Back-plate:  Central back-plate

Two hinges:  Up to 36 kg, with a max door width of 711mm

Three hinges:  Up to 54 kg, with a max door width of 813mm

Glass Fabrication:  Cut-Out Required in Glass

Includes:  Gaskets, Screws, and Glass Fabrication Dimensions

Construction:  Solid brass with all moving parts (pins and springs) in stainless steel.

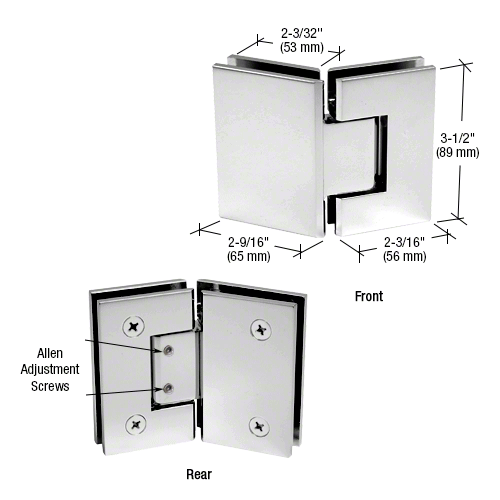

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90º inward and 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb
