Geneva 180 Degree Glass-to-Glass Hinge POLISHED NICKEL

Geneva 180 Degree Glass-to-Glass Hinge POLISHED NICKEL

Regular price £94.99
Regular price £0.00 Sale price £94.99
Sale Sold out
Tax included.

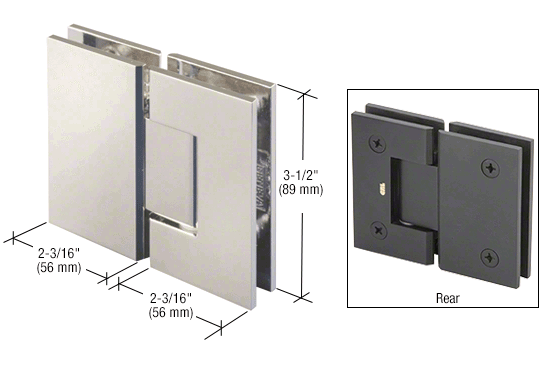

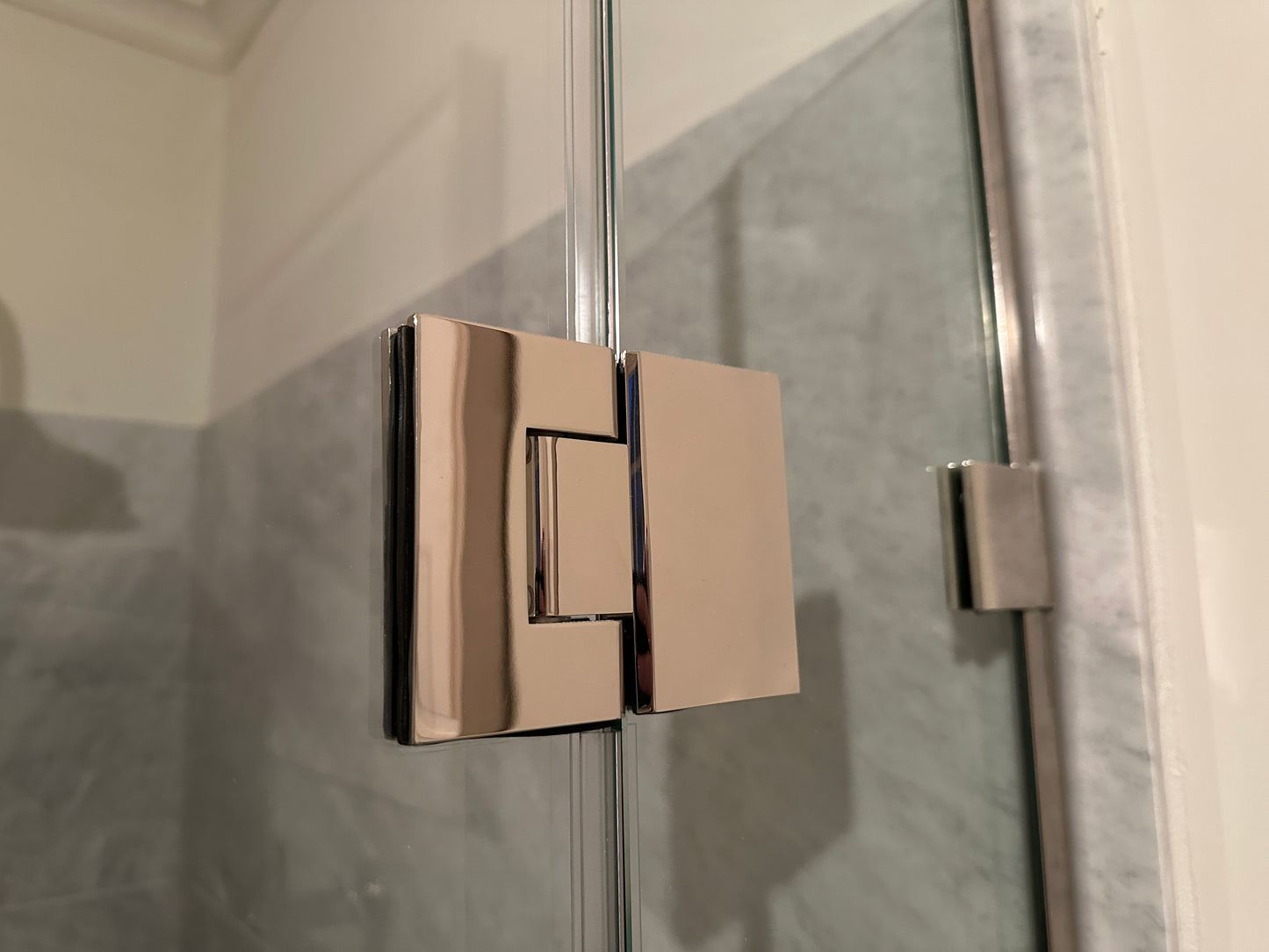

Glass to Glass 180 degree Shower Door Hinge, Polished Nickel Finish

Catalogue Number:  GEN180PN

Glass Thickness:  8mm to 12mm Toughened Safety Glass

Hinge Swings:  90 Degree in and 90 Degree Out

Closing Type:  Self-Centring when within 15 Degree of Closed Position

Deduction:  4mm gap between glass panels

Back-plate:  Central back-plate

Two hinges:  Up to 36 kg, with a max door width of 711mm

Three hinges:  Up to 54 kg, with a max door width of 813mm

Glass Fabrication:  Cut-Out Required in Glass

Includes:  Gaskets, Screws, and Glass Fabrication Dimensions

Construction:  Solid brass with all moving parts (pins and springs) in stainless steel.
