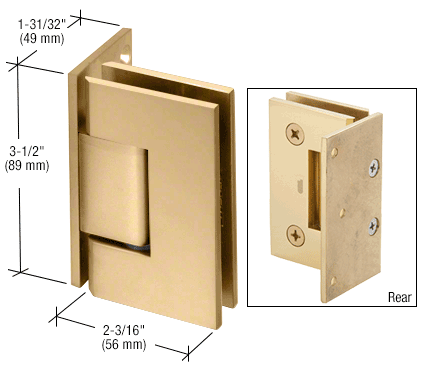

Geneva 044 Wall to Glass Hinge SATIN BRASS
Geneva 044 Wall to Glass Hinge SATIN BRASS
Couldn't load pickup availability
Wall to Glass Shower Door Hinge, Offset Back-Plate, Satin Brass Finish
SKU: GEN044SB
Colour Finish: Satin Brass
Glass Thickness: 8mm to 12mm Toughened Safety Glass
Hinge Swings: 90 Degree in and 90 Degree Out
Closing Type: Self-Centring when within 15 Degree of Closed Position.
Deduction: 8mm from glass width.
Back-plate: Offset back-plate
Two hinges: Up to 36 kg, with a max door width of 711mm
Three hinges: Up to 54 kg, with a max door width of 813mm
Glass Fabrication: Cut-Out Required in Glass
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Construction: Solid brass with all moving parts (pins and springs) in stainless steel.
