Chrome Wall to Glass Support Bar - 1 Metre - For 10mm & 12mm Glass Shower Screens

SKU: SUP10CH

Colour Finish: Chrome

Stock Length: 1m

Want further information on how to use a Support Bar to install your glass shower screen, check our guide out here.

For 3/8" (10 mm) to 1/2" (12 mm) Glass

Vertical, 45 degree End Pieces available separately.

May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
Wall-to-Glass and Glass-to-Glass Models Available for 1/4" to 1/2" (6 to 12 mm) Glass
Simply Cut to Size to Accommodate Individual Configurations
No Hole Drilling Required

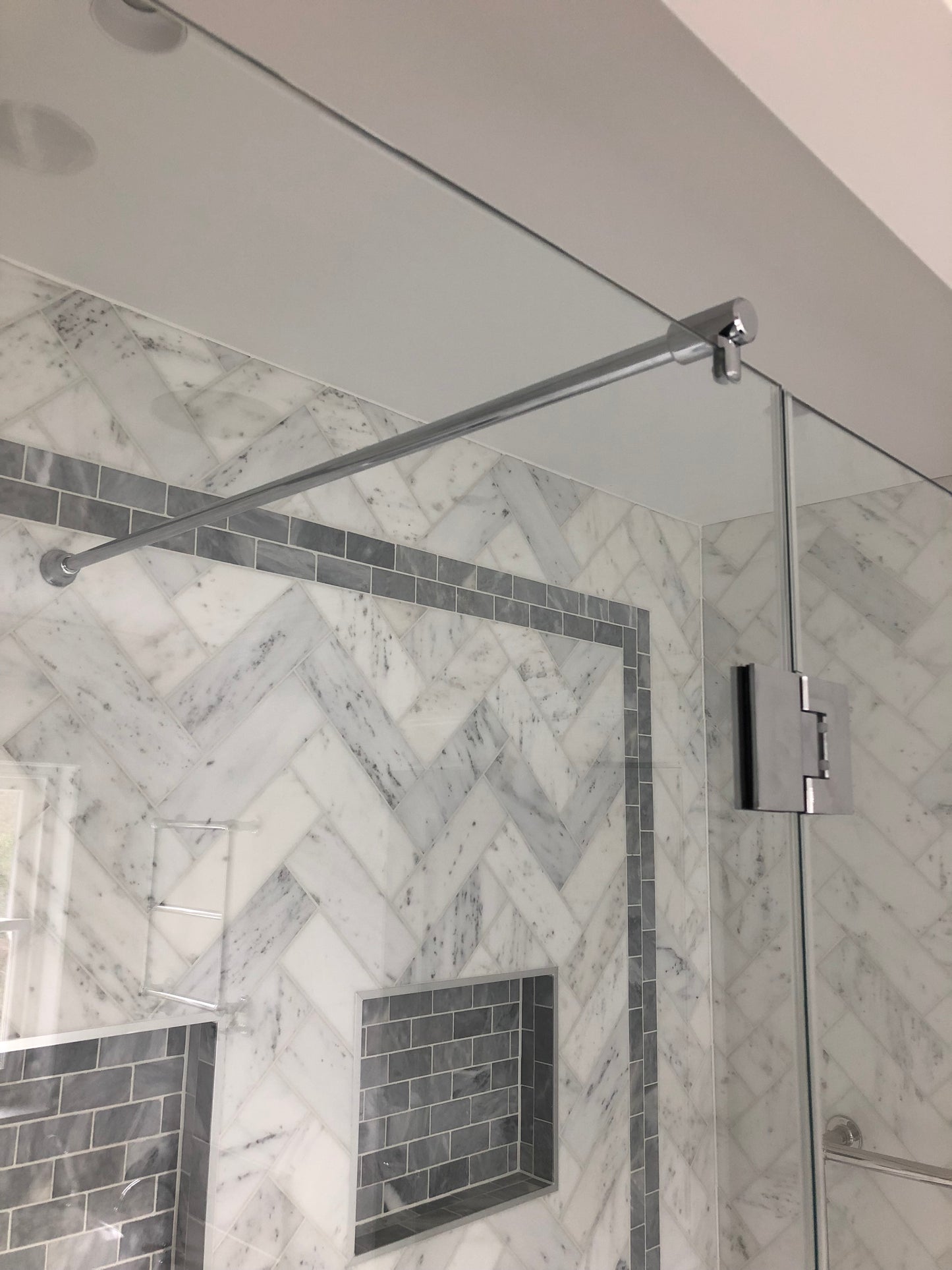

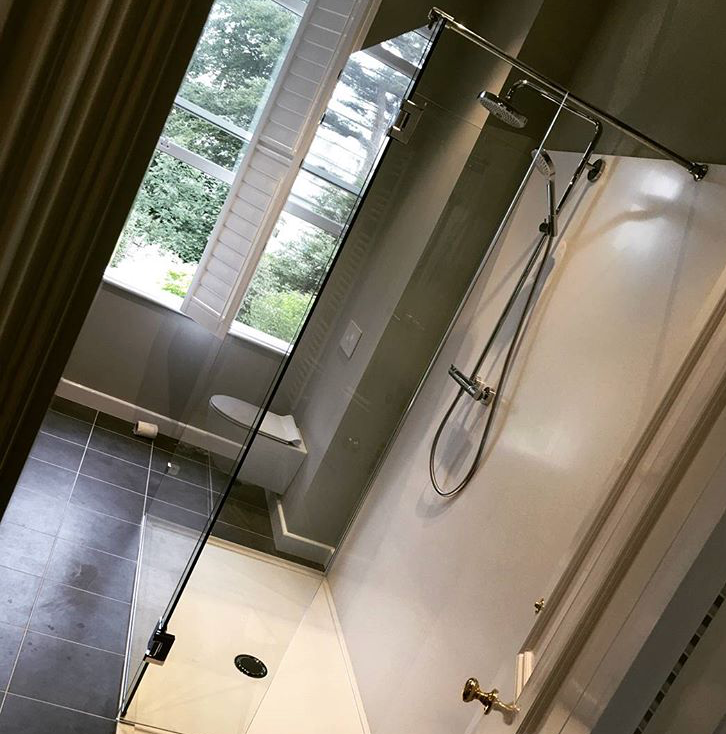

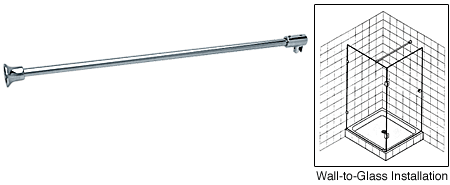

The CRL Fixed Panel Support Bar These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" (6 to 12 mm) thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass.

SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass Fittings
Bar Lengths: 39" (1 m);
Glass Thickness Range: 1/4" (6 mm) to 5/16" (8 mm), and 3/8" (10 mm) to 1/2" (12 mm)
Includes: All Required Mounting Hardware
