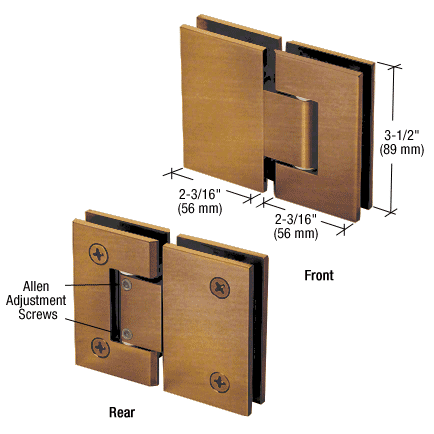

Adjustable Geneva 180 Degree Glass-to-Glass Hinge ANTIQUE BRONZE
Adjustable Geneva 180 Degree Glass-to-Glass Hinge ANTIQUE BRONZE
Couldn't load pickup availability
Adjustable Glass to Glass 180 degree Shower Door Hinge, Antique Bronze Finish
SKU: GEN380ABRZ
Colour Finish: Antique Bronze
Glass Thickness: 8mm to 12mm Toughened Safety Glass
Hinge Swings: 90 Degree in and 90 Degree Out
Closing Type:
Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction).
Deduction: 4/6mm gap between glass panels
Back-plate: Central back-plate
Two hinges: Up to 36 kg, with a max door width of 711mm
Three hinges: Up to 54 kg, with a max door width of 813mm
Glass Fabrication: Cut-Out Required in Glass
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Construction: Solid brass with all moving parts (pins and springs) in stainless steel.
