Square 90 Degree Glass to Glass Clamp - Hole in Glass - 10mm and 12mm Glass - BRUSHED NICKEL

Square 90 Degree Glass to Glass Clamp - Hole in Glass - 10mm and 12mm Glass - BRUSHED NICKEL

Regular price £30.00
Regular price £0.00 Sale price £30.00
Sale Sold out
Tax included.

SKU: SGC90BN


Colour Finish: Brushed Nickel

For 10mm and 12mm Toughened Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps
Use Monolithic Tempered Glass

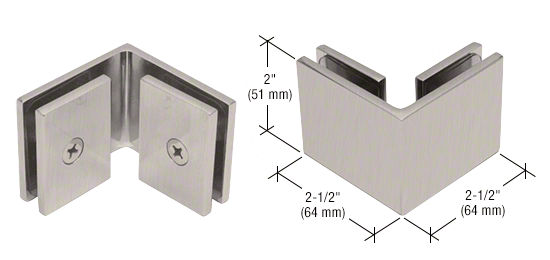

CRL Square 90º Glass-to-Glass Clamps have sharp squared off corners and a closed back. Used to connect two fixed glass panels meeting at 90 degrees. Panels may be overlapped or mitered at the corner. Drawings and templates for all Clamps are available.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
